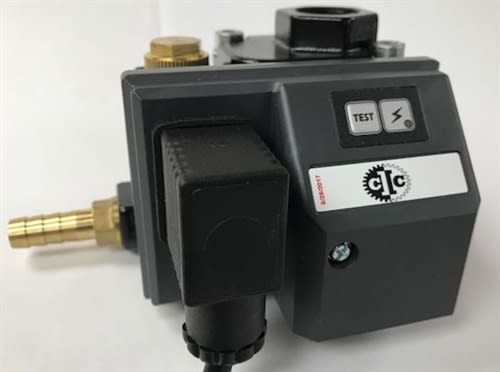

Zero Air Loss Condensate Drain Valve. Extremely Compact, level sensing.
Perfect and efficient condensate removal in an extremely small and lightweight package. Features a test button, LED indicator light and automatic blockage detection.
Energy saving electronic drains are the choice for reliable, energy saving condensate removal.
This drain can remove up to 11 gallons an hour.
Maximum Compressor Capacity - 320 scfm
Maximum Operating Pressure - 230 psig
Connections - Inlet 1/2" NPT (F) - Outlet 1/4" NPT (F)
Discharge valve - Seal Material FPM - Orifice diameter 2.0mm - Type 2/2 way direct acting
Condensate Temperature Range - 34 to 122 F
Housing Material - Aluminum
Electrical Supply - 115VAC standard with 6 foot cord - 24 VAC, 230 VAC & 24 VDC available - please ask
Electrical Protection - NEMA 4 (IP 65)
