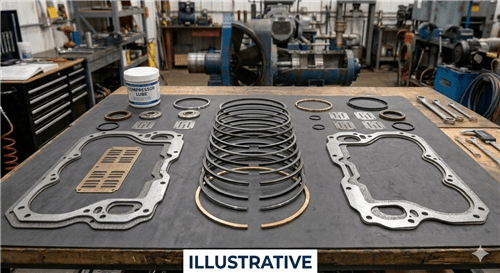

KIT 3035 is a replacment for Ingersoll Rand Ring / Gasket Kit 32133035

Piston Ring and Gasket Kit for Ingersoll Rand Model 10T. It includes all the parts needed for piston ring replacement. It includes both LP & HP piston ring kits, all crankcase gaskets including cylinder base gaskets and oil seal.

This kit contains the following:

• 30294821 ( W21659) Manifold Gasket (3)
• 37138096 (W114364T5) Piston Ring Set (2)
• 37138096 (W114364T6) Piston Ring Set
• 30439268 ( R8282) Front End Cover Gasket
• 30295174 ( W21783) Rear End Cover Gasket
• 30294201 ( W75332 ) Cylinder Base Gasket (3)
• 95674750 ( X1026T32 ) Pilot Valve Shim
• 32204554 ( W99622T6) Oil Seal
• 95022158 O-Ring
• 95210225 O-Ring
